Orion series / AR111

GX53

Certification
  • Introduction
  • ALT Orion AR111 uses aerospace industry level computer cooling technology, in addition to having the longest span life of 50,000 hours, and chips from industry leaders CREE and LUXEON. Replacing a 100W traditional halogen bulb with a 12W ALT AR111 LED saves up to 90% energy. ALT Orion Series AR111 is suitable for shop, boutique, jewelry and other commercial lighting.

  • Features
  • • Elegant-looking and long-lasting lighting output, ideal for interior design.
    • High density aluminum fins increase heat dissipation and assures long lifespan.
    • Multiple beam angles from 15 to 135 degrees.
    • Available in 12W and 15W.

  • GX53

    GX53
    • Working Voltage
    • 12V AC/DC
    • Operating Temp
    • -20 °C~+40 °C
    • Lifespan
    • 50,000 Hours
    • Warranty
    • 3 Years Limited
    • Optional
    • AC Adapter
    • Weight
    • 250 g(8.82 oz)

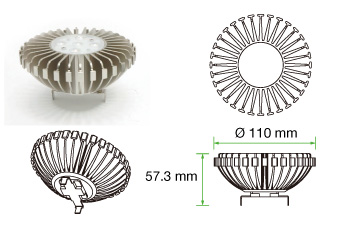

    • Width
    • 110 mm
    • Height
    • 57.3 mm
    Chipset Luminous Flux
    • CREE XT-E 12 Watts

      • True White

        1250 lm

        CRI 70

      • Natural White

        1100 lm

        CRI 80

      • Warm White

        970 lm

        CRI 80

      • Warm White (CK: 2200K)

        850 lm

        CRI 80

    • CREE XT-E 15 Watts

      • True White

        1650 lm

        CRI 70

      • Natural White

        1350 lm

        CRI 80

      • Warm White

        1200 lm

        CRI 80

      • Warm White (CK: 2200K)

        1050 lm

        CRI 80

    • CREE XP-G 12 Watts

      • True White

        1150 lm

        CRI 80

      • Natural White

        970 lm

        CRI 80

      • Warm White

        850 lm

        CRI 80

    • CREE XP-G 15 Watts

      • True White

        1400 lm

        CRI 80

      • Natural White

        1200 lm

        CRI 80

      • Warm White

        1070 lm

        CRI 80

    • CREE XP-E 12 Watts

      • True White

        980 lm

        CRI 80

      • Natural White

        850 lm

        CRI 80

      • Warm White

        750 lm

        CRI 80

    • CREE XP-E 15 Watts

      • True White

        1150 lm

        CRI 80

      • Natural White

        990 lm

        CRI 80

      • Warm White

        870 lm

        CRI 80

    • LUXEON Rebel ES 12 Watts

      • True White

        1150 lm

        CRI 80

      • Natural White

        970 lm

        CRI 80

      • Warm White

        850 lm

        CRI 80

      • Warm White

        680 lm

        CRI 90

    • LUXEON Rebel ES 15 Watts

      • True White

        1400 lm

        CRI 80

      • Natural White

        1200 lm

        CRI 80

      • Warm White

        1070 lm

        CRI 80

      • Warm White

        860 lm

        CRI 90

    • LUXEON Rebel 12 Watts

      • True White

        980 lm

        CRI 80

      • Natural White

        850 lm

        CRI 80

      • Warm White

        750 lm

        CRI 80

      • Warm White

        600 lm

        CRI 90

    • LUXEON Rebel 15 Watts

      • True White

        1150 lm

        CRI 80

      • Natural White

        990 lm

        CRI 80

      • Warm White

        870 lm

        CRI 80

      • Warm White

        700 lm

        CRI 90

    • EPISTAR 12 Watts

      • True White

        700 lm

        CRI 98

      • Warm White

        550 lm

        CRI 98

    • OSRAM Square 15 Watts

      • True White

        1300 lm

        CRI 70

      • Natural White

        1150 lm

        CRI 70

      • Warm White

        1000 lm

        CRI 80

      • Warm White

        800 lm

        CRI 92

    Download More Information
    Certification

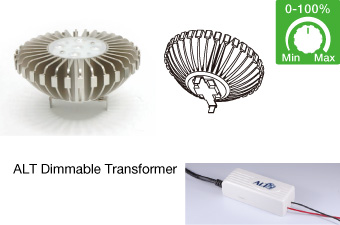

  • AR111 - Dimmable(With ALT Transformer)
    • Working Voltage
    • 110V AC, 220V AC
    • Operating Temp
    • -20 °C~+40 °C
    • Lifespan
    • 50,000 Hours
    • Warranty
    • 3 Years Limited
    • Weight
    • 250 g(8.82 oz)
    • Base
    • GX53
    • Power Consumption
    • 10 Watts
    • Note
    • Compatible with all dimmers. One dimmer to multiple dimmable LEDs.
    Download More Information
